Name: Koolmax Integrated Cold Rooms - 2200MM High and 80MM Insulation Thickness
Brand: Koolmax
SKU: 2200MM High and 80MM Insulation Thickness
Availability: InStock

Koolmax Integrated Cold Rooms – 2200MM High and 80MM Insulation Thickness

£0.00

Request a Quote

0 People watching this product now!

Description

Cold Rooms

Width (mm)	Depth (mm)	Height (mm)	Capacity (m3)	Doors clear opening WxH (mm)	Dim. interior WxDxH (mm)	Width door (mm)	Insulation thickness (mm)	Gross Weight (kg)
1500	1500	2200	3.7	700×1845	1340x1340x2040	700	80	260
1500	1800	2200	4.5	700×1845	1340x1640x2040	700	80	285
1500	2100	2200	5.3	700×1845	1340x1940x2040	700	80	320
1800	1800	2200	5.5	700×1845	1640x1640x2040	700	80	325
1800	2100	2200	6.5	700×1845	1640x1940x2040	700	80	365
1800	2400	2200	7.5	700×1845	1640x2240x2040	700	80	400
2100	2100	2200	7.7	700×1845	1940x1940x2040	700	80	395
2100	2400	2200	8.9	700×1845	1940x2240x2040	700	80	425
2100	2700	2200	10.1	700×1845	1940x2540x2040	700	80	460
2100	3000	2200	11.2	700×1845	1940x2840x2040	700	80	500
2400	2100	2200	8.9	700×1845	2240x1940x2040	700	80	425
2400	2400	2200	10.2	700×1845	2240x2240x2040	700	80	460
2400	2700	2200	11.6	700×1845	2240x2540x2040	700	80	495
2400	3000	2200	13	700×1845	2240x2840x2040	700	80	535
2700	1500	2200	6.9	700×1845	2540x1340x2040	700	80	400
2700	2100	2200	10.1	700×1845	2540x1940x2040	700	80	460
2700	2400	2200	11.6	700×1845	2540x2240x2040	700	80	500
2700	3000	2200	14.7	700×1845	2540x2840x2040	700	80	560

Condensing Units

Type	Width (mm)	Depth (mm)	Height (mm)	Voltage (Volt)	Electrical power (kW)	Cooling agent	Temperature range (°C)	Cooling capacity (W)	Climate control	Gross Weight (kg)

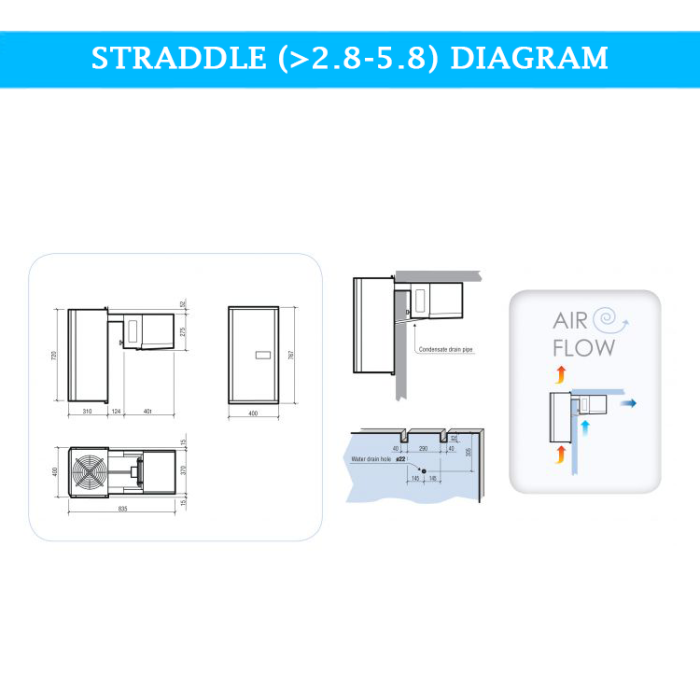

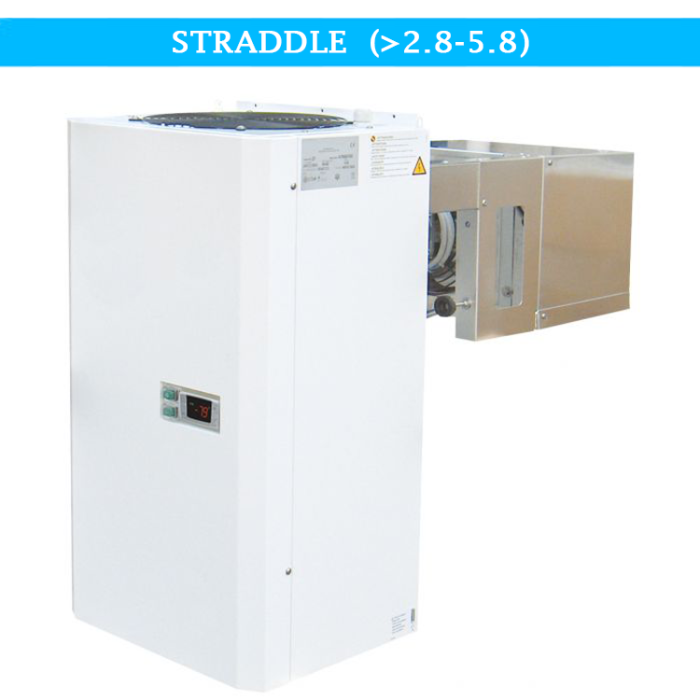

Straddle	400	835	767	230	0.68	R 452 A	0/+5	>2.8-5.8	No	46
Straddle	400	835	767	230	0.92	R 452 A	0/+5	>6-10.4	No	47

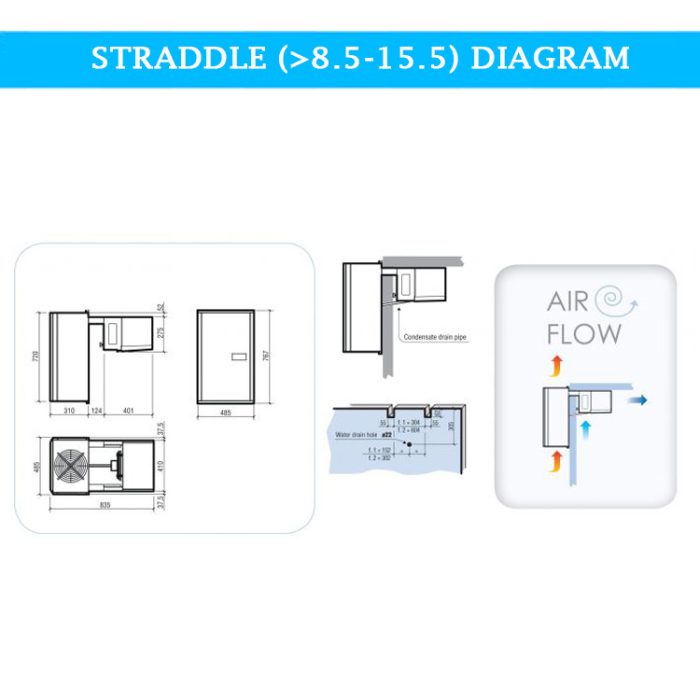

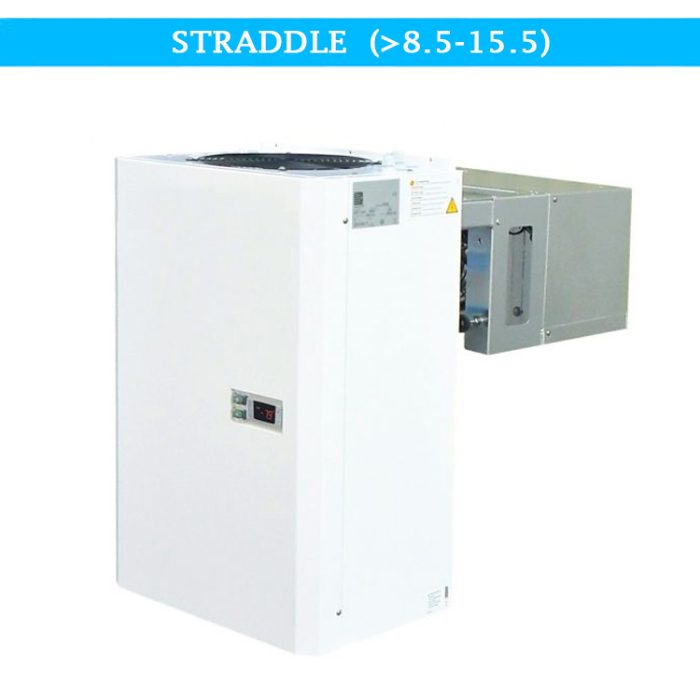

Straddle	485	835	767	230	0.92	R 452 A	0/+5	>8.5-15.5	No	49

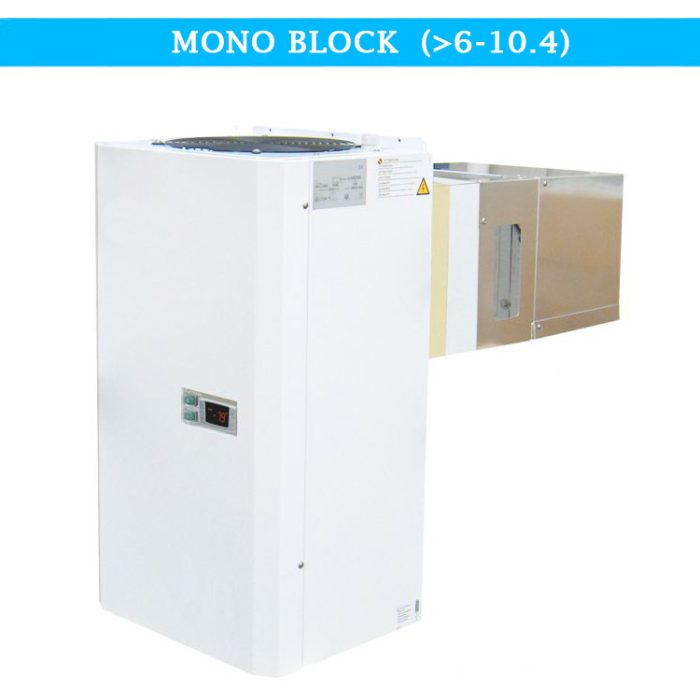

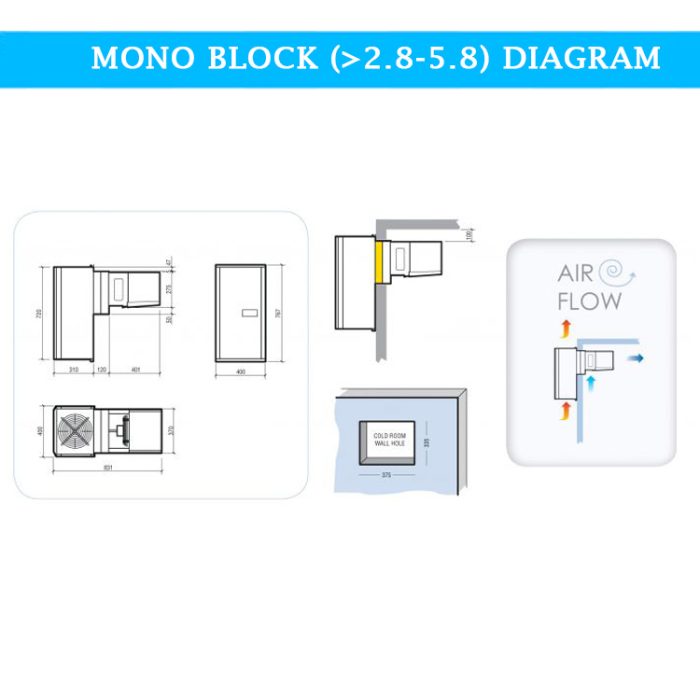

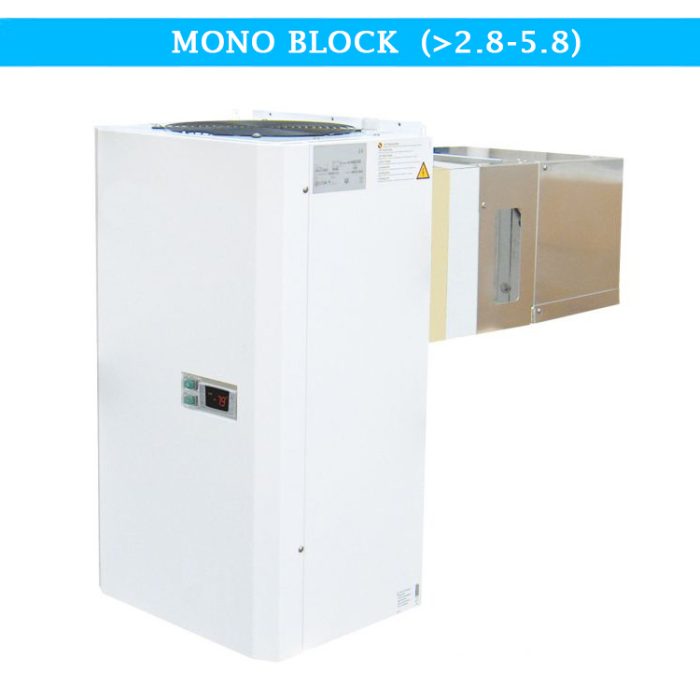

Monoblock	400	831	767	230	0.68	R 452 A	0/+5	>2.8-5.8	No	49
Monoblock	400	831	767	230	0.92	R 452 A	0/+5	>6-10.4	No	50

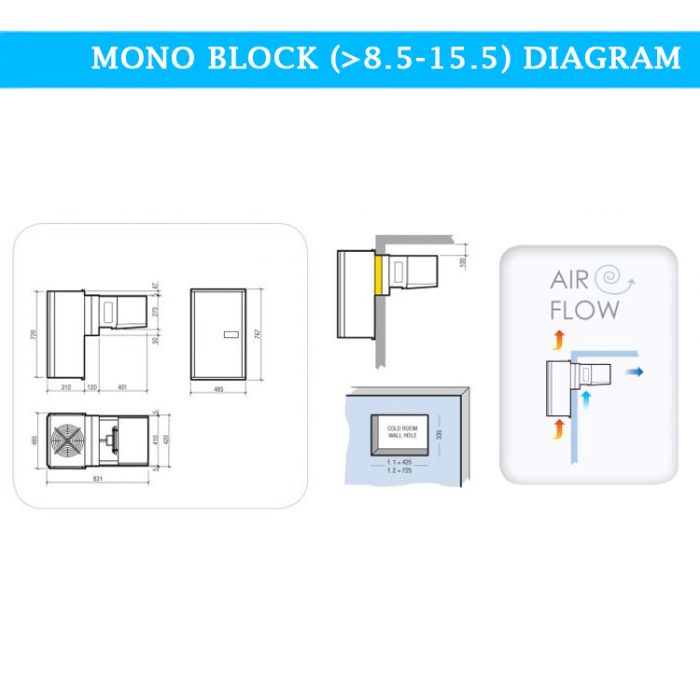

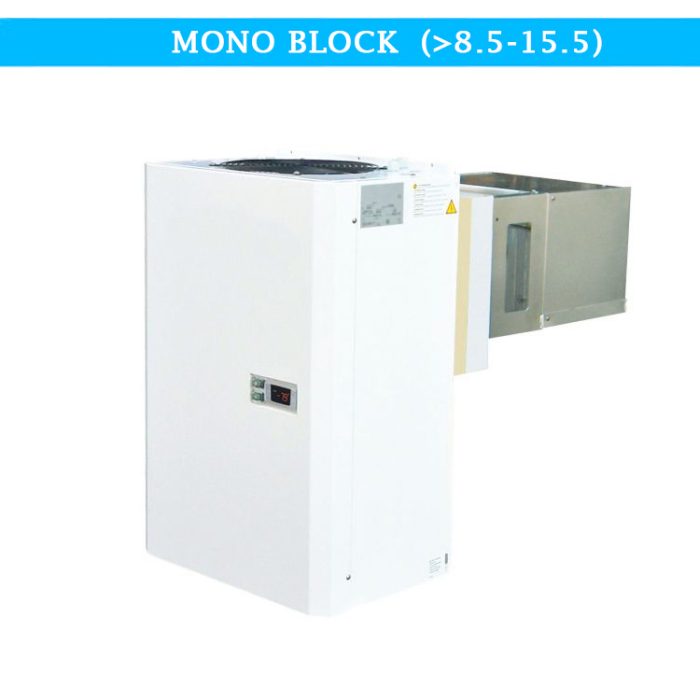

Monoblock	485	831	767	230	0.92	R 452 A	0/+5	>8.5-15.5	No	52

Specifications

General Specifications	Gross Weight (kg): 260 – 560 Width door (mm): 700 Insulation thickness (mm): 80
Technical Specifications	Capacity (m3): 3.7 – 14.7
External Dimensions	Height (mm): 2200mm Width (mm): 1500 – 2700mm Depth (mm): 1500 – 3000mm

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Delivery Information

DELIVERY INFORMATION

To ensure that our commitment to excellence extends beyond our actual products, we have optimized our delivery services. We always use a specialist delivery team to handle our products with expert care. You can rest assured that your refrigeration is in the best possible hands.

Our standard delivery is free* for UK Mainland only, and extra delivery charges may apply to postcodes starting from AB, DD, DG, FA, IV, KA, KW, LD, LL, ML, PH, PL, SA, TR, TQ, and KY. We strive to deliver your order within 3 to 7 working days. Please remember to leave your unit unplugged for the first 6 hours so that the gas and oil can settle. Our free basic delivery usually takes 3-7 working days between the hours of 08:00 and 18:00. If you require faster delivery, we offer a next working day and timed delivery service for mainland UK, with extra charges that apply. We take pride in our fast delivery service, especially for urgent deliveries. For more information, please do not hesitate to call us.

"Room Size" is a required field.
"Condensing Unit" is a required field.
"Shelving System" is a required field.
"Installation Service " is a required field.

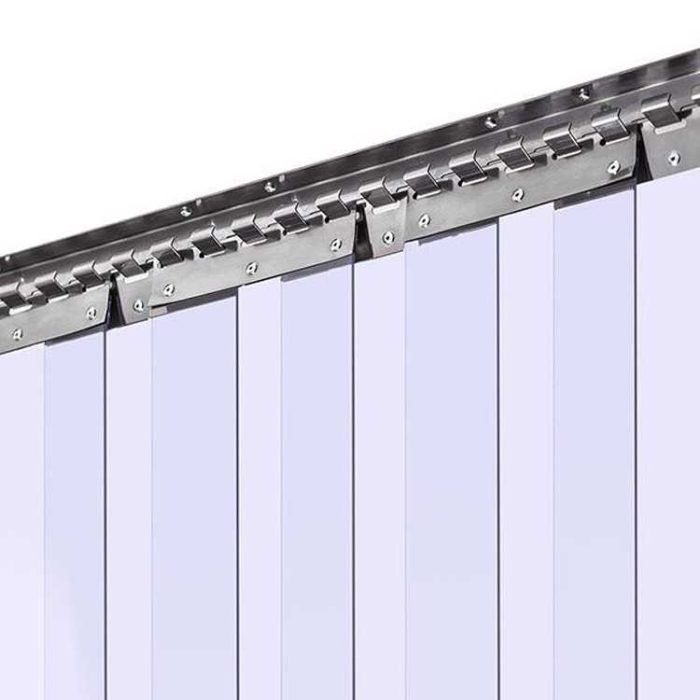

"Curtains" is a required field.
"Warranty" is a required field.

Koolmax Integrated Cold Rooms – 2200MM High and 80MM Insulation Thickness

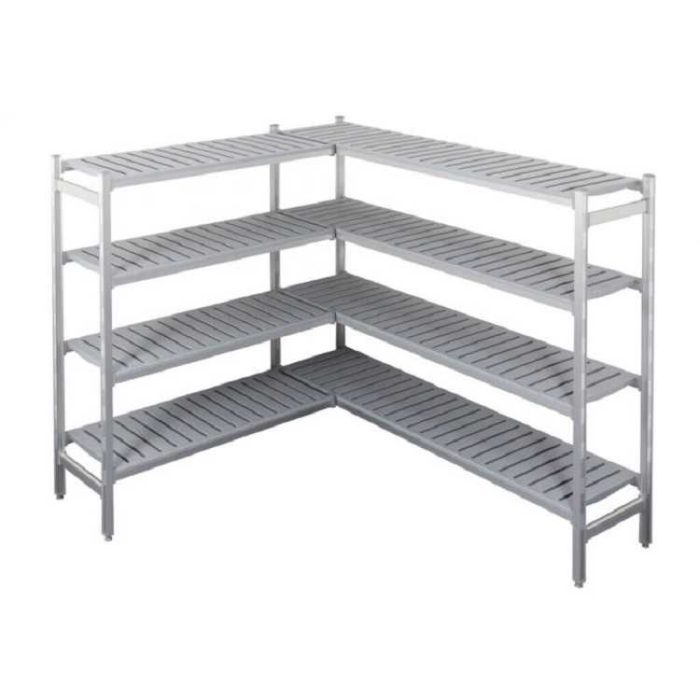

Shelving System of cold and freezer rooms
